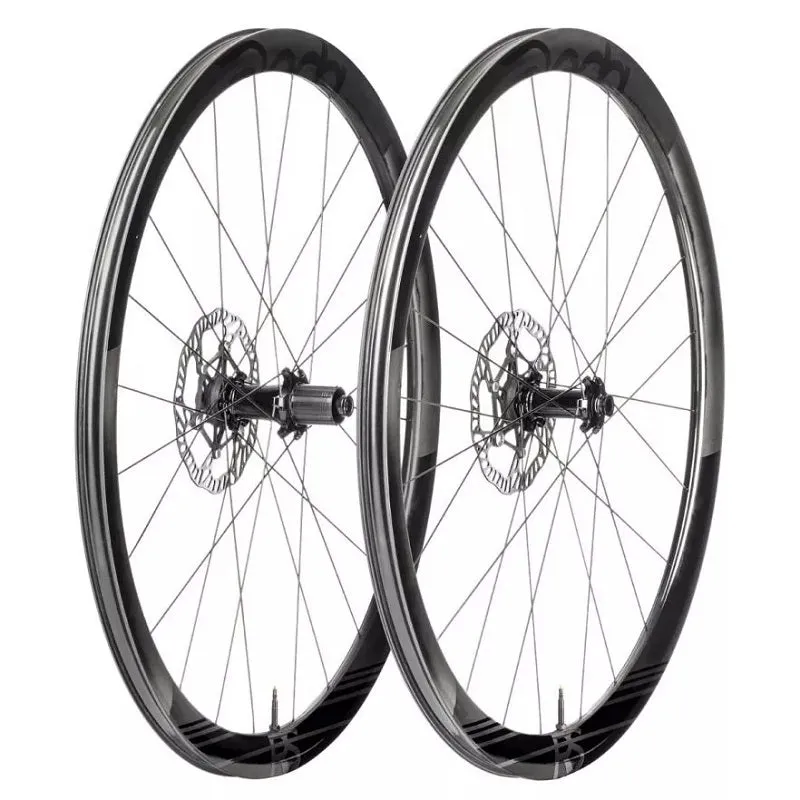

The new RS4DB defines a new standard for performance and lightness of a tubeless disc brake wheelset. Wheels feature a 38mm rim profile and a 26 mm width (19mm internal) designed to be fast and light on any course. The full carbon rim is molded with a technology that allows the differentiated distribution of the thickness. The rim is reinforced in the nipple area and has reduced thickness out of the nipple area. This bring an important weight saving on the external part to reduce the inertia of the wheel. RS hubs have been completely reengineered compared the SL generation. More aero and lighter to get a total weight saving of 80g. The rear hub features a 2-ratchet system for the freehub engagement. A smaller ratchet is located in the freehub body while the bigger is located inside the hub flange for a better pedals force transmitting. The hubs design considerably improves the wheels smoothness for superior speed. The rim is built with the tubeless-ready technology to be compatible with clincher and tubeless tires. The internal nipples improve aerodynamics, while the self-locking ABS system prevents the loosening of the nipples and spokes. Available for Shimano, Campagnolo, Campagnolo 13S and Sram cassettes.

Material:
High modulus carbon fiber ud and 3k combined structure with a differentiated distribution of the thickness
Rim height:
38 mm
Rim width:
26 mm external
19 mm internal (etrto 622 19C)
Spokes:
24 spoke count, front and rear; black
Nipples:
Internal alloy hexa 5.5 mm, 10 mm length, self-locking abs
Hub:
AL7075 hub body , 17mm front axle, 15 mm rear axle, 20T ratchets, ceramic bearings
Disk brake rotor:
Shimano center lock
Thru-axle compatibility:
- Front 12 100 mm
- Rear 12 142 mm
Freehub:
Shimano, Sram XD-R, Campagnolo, Campagnolo 13S
Accessories included:
Tubeless rim tape, tubeless valves, center-lock lockring, wheels bag
Tire compatibility:
Clincher or tubeless-Ready
Weight:
1.340 g set
