Description

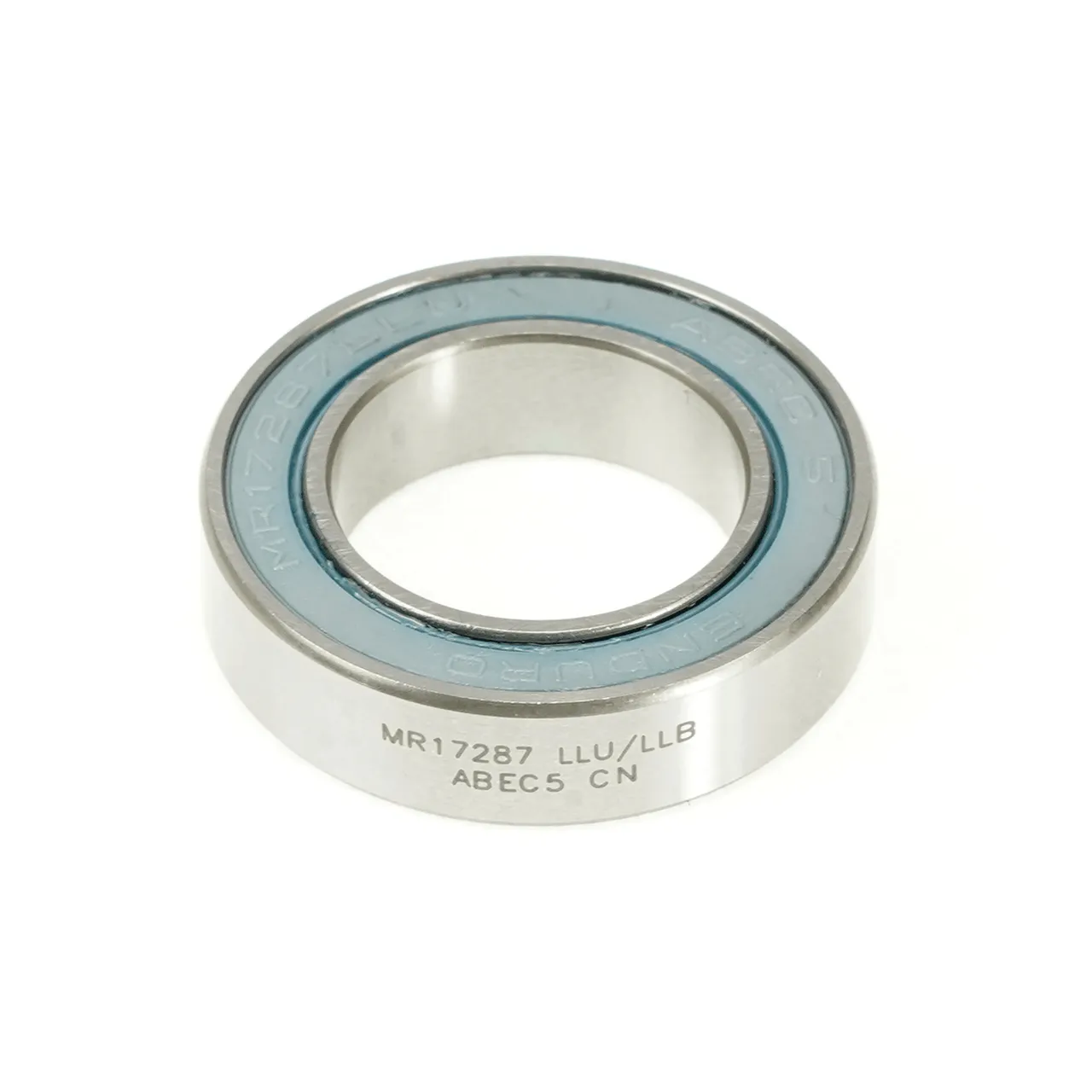

This ABEC-5 bearing features deep-groove design races, with Grade 10 balls, dual-lip, labyrinth, full-contact LLU seals facing outwards to withstand daily abuse of use and the elements, and lighter-contact LLB seals facing inwards to contain the 90% fill Mobil XHP 222 high-pressure water-proof synthetic grease. CN clearance specification is best for looser press-fit bearing bores.

Features

• A radial bearing generally used as a hub bearing, and can be used as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use.
• The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Specifications

• Inner Diameter: 17mm
• Outer Diameter: 27mm
• Width: 7mm
• Static load: 488lbf
• Weight: 13.6g
