Balanced Stiff Design
2:1 spoke lacing pattern is adopted to perfectly balance the tension of the spokes on both sides, which makes the stiffness just right. With a highly stiff spokes design, the spoke tension of rear-wheel drive side is 120kgf10%. The balance performance is improved by 100% than wheelset with 1:1 lacing

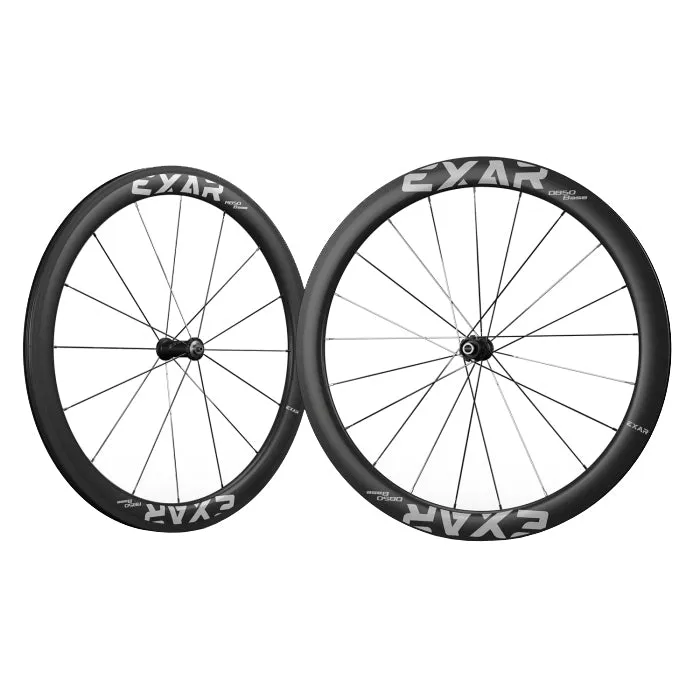

HI-MOD Carbon Fiber Wheelset
EXAR wheelset Base series feature HI-MOD T700 carbon fiber and retain the engineering technology of EXAR wheelset Standard series, with comparable performance and quality.

With optimized rim force structure, it can offer an outstanding performance at just right stiffness and weight.

Ultra-Safe Braking Rim
The braking rim of rim brake wheelset is made of resin that is resistant to high temperature. This can improve the performance of heat dissipation and resistance. Therefore, its less possible that resin melts under continuous braking, reducing the occurrence of carbon fiber frame burning.

Compatible with Various Tires

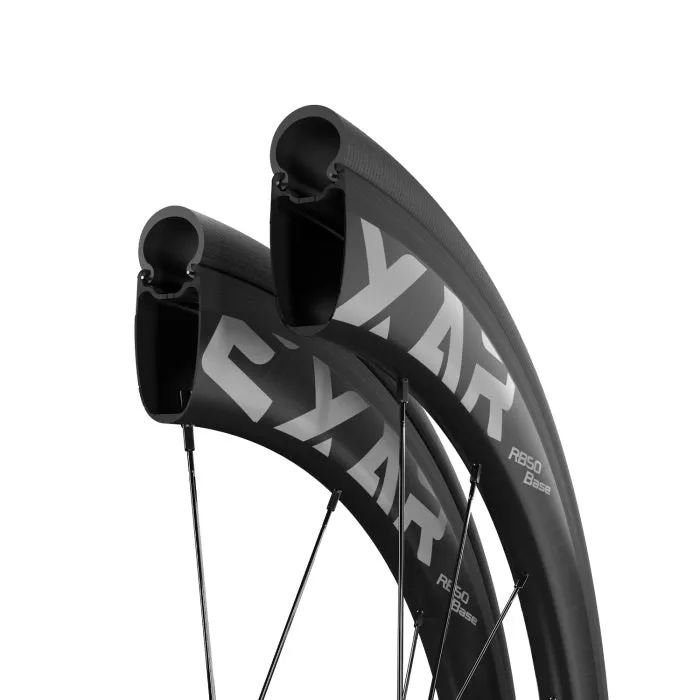

Compatible with regular clincher tires and tubeless tires. Tubeless rim tape is ready while engineering so that one can install the tubeless tire directly.

With tubeless rim, you can get lower rolling resistance caused by friction between inner tube. Moreover, you can cycle at a lower pressure, which provides better grip and makes you feel more comfortable.

EXAR wheelset Base series provide both rim brake and disc brake solution. You can choose any as braking method as well as your own preference.

Excellent Aerodynamic Configuration
The EXAR wheelset Base series apply 50mm height rims, which is recognized as a perfectly suitable configuration for a variety of road conditions with excellent aerodynamics. Whether it is hilly routes with ups and downs or flat highway in big city, the EXAR wheelset Base series are all competent.

Specifications:

Rim Depth
50mm

Weight
DB50 Base 1550g (The weight has an error of 3%)

External Rim Width
26mm

Internal Rim Width
19mm

Rim Material
T700

Compatible Tire Type
Clincher Tire, Tubeless Tire

Compatible Tire Width
Suggested Tire Width is 25c - 32c

Spoke Type
pillar1423

Brake
DB50 BaseCenter lock disc brake

Front Wheel Spoke Tension
100kgf10%

Rear Wheel Spoke Tension
Drive side 120kgf10%,Non-drive side 100kgf 10%

Front Wheel Spoke Lacing Pattern
DB50 Base: 21H, 2:1

Rear Wheel Spoke Lacing Pattern
DB50 Base: 24H, 2:1

Frame Spacing
RB50 Base : 100/130mm quick release // RB50 Base 100/142mm thru-axle (100/135mm quick release, available separately)

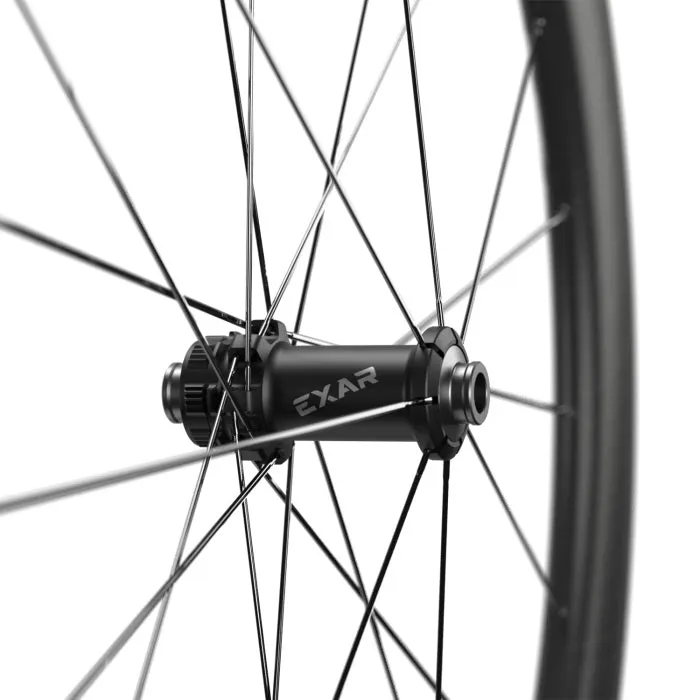

Freehub
Standard SHIMANO 11-speed (CP cassette body, available separately for XDR cassette body)

Compatible Cassette
SHIMANO 8-12 speed, SRAM 8-12 speed (Available separately for XDR cassette body for 12-speed). Campagnolo 8-12 speed (Available separately for CP cassette body in all models)

Ratchet
36T (Compatible with DT System. Replaceable Ratchet with Different Tooth Amount)
