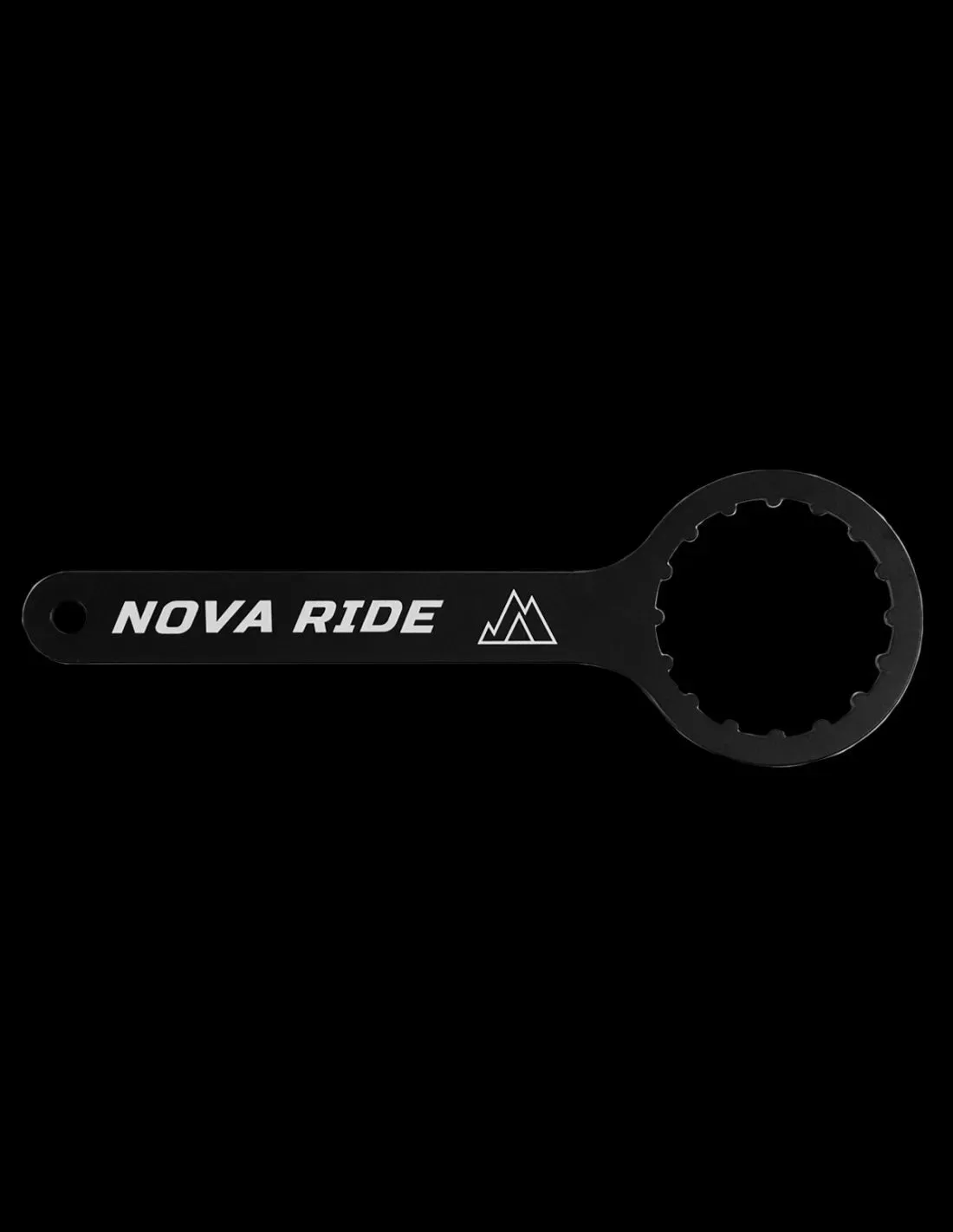

This product is made up of two 7075 aluminum cups with hybrid sealed bearings (ceramic balls and steel cage) and a special key to tighten your bottom bracket during assembly.

The Nova Ride bottom bracket improves the fluidity of your transmission, allowing a power gain to satisfy the most demanding. Thanks to this product, you will obtain flexible and silent pedaling.

The threaded solution developed by Nova Ride for the Pressfit bottom bracket shells allows the two cups to be perfectly aligned, which eliminates creaking and improves the durability and fluidity of the bearings. This threaded solution facilitates the assembly and maintenance of the bottom bracket, and above all makes it possible to increase the rigidity of the casing by fixing the two cups together.

Designed with very high-end components: two cups CNC machined in anodized 7075 aluminum allow better rigidity and coupled with ceramic ball bearings, reduce pedal friction and improve the efficiency of your transmission.

Features

Compatibilities

• A - Frame width: 86.5mm
• B - Internal frame diameter: 41mm
• C - Bottom bracket axle: 24mm

BB86 (PF86, PF41, PF24) - 24mm

• Shimano 24mm axle cranks.
• The rotor 24mm axle cranks
• FSA Mega-Exo 24mm axle cranks

Specification

• Type -Press fit
• Bearing Type -Ceramic
• Length -24mm
• Shell Width -86.5mm
• Spindle Diameter -41mm
