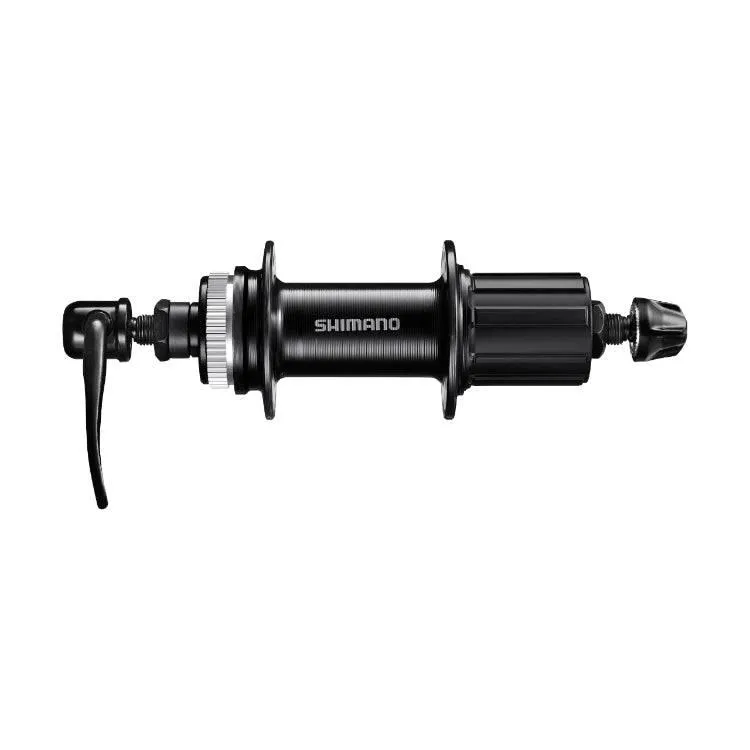

Shimano HB-TX505, an economic and reliable disc brake hub
High-reliability disc brake hubs from Shimano. For disc brake MTBs, the SHIMANO TX505 secures via a quick release.
Features
- Efficient and comfortable riding
- Smooth rotation with less drag
- Quick and easy assembly
- Center Lock
- Durable, long-lasting performance
- Quick and easy assembly
Specifications
| MODEL NO | HB-TX505 |
| SERIES | SHIMANO |
| Color | Black |
| Color|1 Hub shell | Black |
| Color|1 Quick release | Black |
| Brake type | CENTER LOCK disc brake |
| O.L.D. (mm) | 150 |
| Spoke hole|28H | |
| Spoke hole|32H | |
| Spoke hole|36H | |
| External serration disc brake rotor lock ring|without | |
| Axle fixing method | Quick release |
| Flange diameter (mm) | 52.8 (32H/36H) |
| Flange diameter Left/Right (mm) | 52.8 (32H/36H) |
| Flange distance (mm) | 60.2 |
| Offset (mm) | 5.3 |
| P.C.D. left / right (mm) | 44/44 |
| Seal | Contact |
Additional Info
- Country of Origin: Malaysia/Japan
- Imported By: Shimano South Asia Pvt Ltd. , 19 , (Ground Floor) Kumara Krupa Road , Bangalore 560 001 , Karnataka , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore - 560041. Ph: (080)47183232, Email: [email protected]
- Commodity: Rear Hubs
