PRODUCT SPECIFICATIONS

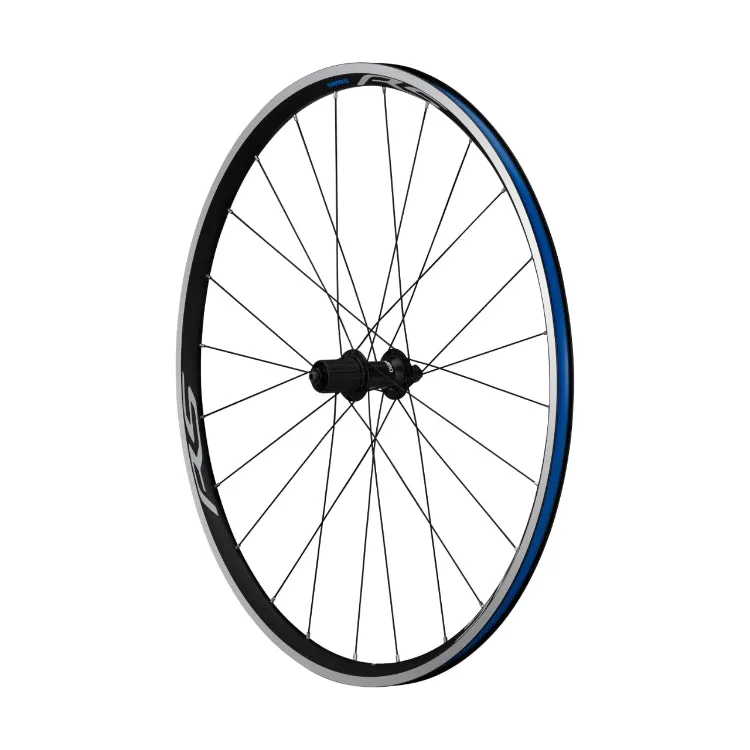

MODEL NO: WH-RS100-CL-R
SERIES: TIAGRA 4700 Series
Color: Black
Average weight: 1105
Remarks * The adapter is needed to use 10-speed cassette sprocket
Brake type: Rim brake
Axle fixing method: Quick release
O.L.D. (mm): 130
Rear speeds: 11/10*
Quick release skewer length (mm)_163:
Quick release skewer length (mm)_168:
Compatible spoke protector: CP-WH24 CP-FH53 (34T)
Front/Rear: Rear
Reflector_AS: CATEYE RR-550-WUA SW
Reflector_DIN: CATEYE RR-317-WUA SW
Reflector_JIS/CPSC: CATEYE RR-550-WUW SW
Rim_Height (mm): 24
Rim_OFFSET RIM:
Rim_Requires rim tape: 18-622
Rim_Rim joint: Sleeved
Seal_FREEHUB body: Contact
Seal_Hub: Contact
Spokes_Number: 24
Tire_Recommended size: 23-622 - 32-622
Tire_Type: Clincher
Wheel Size: 622 x 17C
Color_1 Hub shell: Black
Color_1 Quick release: Black
HG spline (ROAD 11-speed):
Model name: WH-RS100-CL
Engagement type: Pawl ratchet
Rim_External width (mm): 23.2
Rim_Internal width (mm): 17
Spokes_Diameter (mm): 2
Specification: R
